Cost-Efficient Transparent Silicone Potting Compound for Basic Electronic Protection
High-Transparency Silicone Potting Compound For LED Lighting
BZ-3703 is an economical two-component room-temperature-curing condensation-type silicone potting compound exclusively designed for basic LED lighting products and low-power electronic devices. Featuring moderate transparency, wide temperature tolerance (-50~180℃), and RoHS compliance, it provides reliable protection against UV radiation, thermal shock, and moisture for standard components. However, its performance is constrained by basic electrical insulation (breakdown voltage ≥15 kV/mm) and limited thermal conductivity, making it unsuitable for high-power systems, extreme environments, or precision electronic applications.
Key Product Features
- Cost-optimized solution: Delivers reliable performance at a competitive price point, ideal for high-volume production of entry-level LED lighting and consumer electronics
- Simplified operational workflow: Excellent fluidity and a 10:1 mixing ratio (A:B) enable straightforward pouring and potting operations with minimal training
- Balanced thermal stability: Maintains consistent performance across -50 to 180℃, withstanding typical temperature fluctuations in residential and commercial environments
- High-clarity encapsulation: Preserves strong light transmittance, suitable for standard LED modules and basic optical assemblies
- Adequate UV resistance: Offers reliable defense against ultraviolet degradation in non-extreme outdoor applications
- RoHS-compliant formulation: Meets EU RoHS directives, supporting eco-friendly manufacturing practices
- IPX7 waterproofing: Ensures sealed components remain functional in wet conditions, ideal for general outdoor lighting and portable devices
Technical Parameters
| Before curing |
Appearance |
Clear liquid |
Clear liquid |
| Viscosity(cps.25℃) |
1000-1600 |
45-55 |
| Initial mixed viscosity(cps.25℃) |
750-1250 |
| Density(g/cm³.25℃) |
0.96±0.05 |
0.98±0.05 |
Mixing
&
Curing |
Mix ratio(by weight) |
A:B=10:1 |
| Pot life 130±30g(min.25℃) |
45±15 |
| Curing condition |
Room temperature curing |
| Surface drying time 30g(H.25℃) |
1H-2H |
| Curing time 30g(H.25℃) |
3H-5H |
| After curing |
Color |
Clear |
| Hardness (Shore A) |
15±5A |
| Temperature resistance(℃) |
-50~180℃ |
| Water absorption(24H) |
≤0.5% |
| Surface resistivity(Ω/sq) |
≥1.0×1014 |
| Volume resistivity(Ω.cm) |
≥1.0×1013 |
| Elongation at break(%) |
≥30% |
| |
Dielectric constant(at 50Hz) |
≤4.5 |
| |
Breakdown voltage(kV/mm) |
≥15 |
Product Applications
- Entry-Level LED Lighting: Encapsulates basic LED modules, drivers, and fixtures in residential lighting, decorative lights, and low-power outdoor lamps
- Consumer Electronics: Protects power supplies, small sensors, and control circuits in household appliances, toys, and personal electronics
- Small Electrical Appliances: Seals components in kitchen appliances, power tools, and garden equipment, providing basic protection against moisture and dust
- Automotive Auxiliary Lighting: Encapsulates interior lights, dashboard displays, and auxiliary exterior lights in vehicles
- Solar-Powered Devices: Insulates small solar panels, charge controllers, and battery systems in portable solar lights and garden decor
Directions for Use
- Pre-potting Preparation: Calibrate scales, prepare potting tools, cleaning tools, check machine settings, check vacuum pump force, etc.
- Product Pre-treatment: Place product on a level surface or fixture. Remove dust, clean, degrease, and dry if necessary.
- Accurate Proportioning: Manual operation requires precise mixing according to the specified ratio and recording. Machine potting requires calibrated ratios and first-article confirmation is recommended.
- Mixing & Stirring: Manual operation requires thorough stirring or using electric stirrers to ensure homogeneous mixing. Machine potting requires sufficient stirring speed, adjust as needed.
- Uniform Potting: Manual operation should be done in small, multiple batches to ensure uniformity. Machine potting should follow the programmed path for quantitative dispensing.
- Inspection or Secondary Potting: After potting, visually inspect as needed. Perform touch-up, bubble removal, or secondary potting if required.
- Curing: Allow the potted and inspected products to cure at room temperature , according to product and process requirements.
- Final Product Confirmation: Perform visual inspection and performance testing as required by the customer.
Packing & Shipping & Storage
-

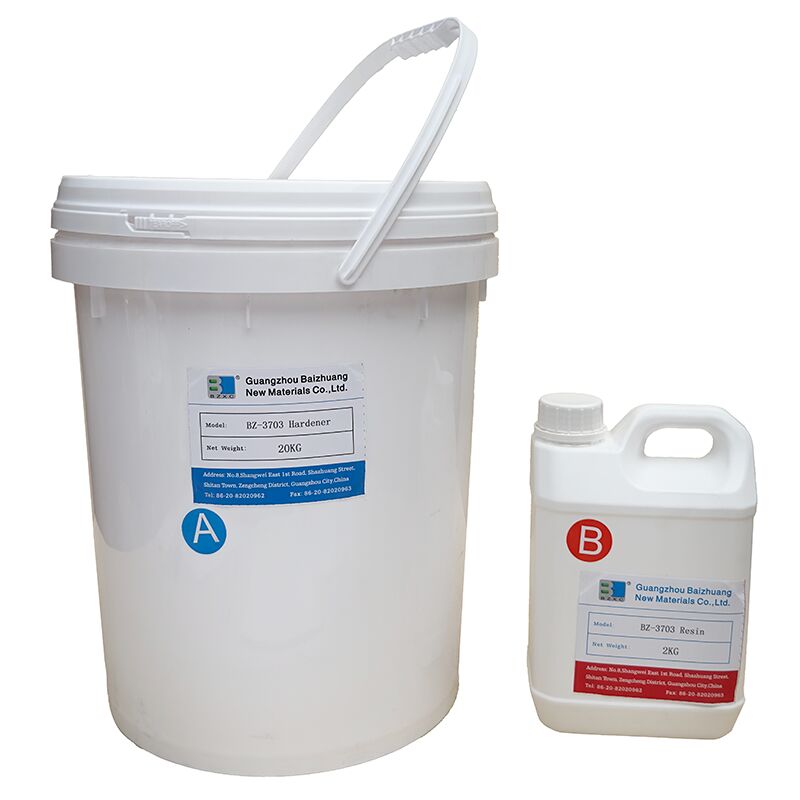

Part A: Typically supplied in 20kg sealed plastic drums.
Part B: Typically supplied in 5kg sealed plastic drums.
- Store and transport as a general chemical product.
- Store sealed, protected from light at room temperature. Shelf life varies from 6 to 12 months depending on packaging; please refer to the expiry date on the shipping package.
- Store and transport as a general chemical product, Keep out of reach of children.
FAQ:
Q: What are the primary applications of Weather-Resistant Transparent Silicone Potting Compounds?
A: These compounds are ideal for protecting electronic components, outdoor LED lighting, sensors, and other devices exposed to harsh weather conditions due to their excellent weather resistance and transparency.
Q: How does the transparency of this silicone potting compound benefit my project?
A: The transparent nature allows for visual inspection of components after potting, and it does not obstruct light, making it perfect for LED encapsulation and optical applications.
Q: Can this silicone potting compound withstand extreme weather conditions?
A: Yes, it is specifically formulated to resist UV radiation, moisture, temperature fluctuations, and other environmental factors, ensuring long-lasting protection outdoors.
Q: Is this product easy to apply and cure?
A: Yes, the compound has excellent flow properties for easy application and cures at room temperature to form a flexible, durable, and weatherproof seal.
Q: Does the silicone potting compound provide electrical insulation?
A: Absolutely, it offers excellent electrical insulation properties, protecting sensitive electronic components from moisture and contaminants.
