Polyurethane Potting Compounds
>
Customizable Curing Polyurethane Potting Compound For Electronic Components 6805-3R-K

Customizable Curing Polyurethane Potting Compound For Electronic Components 6805-3R-K

Product Details:
Place of Origin: China
Brand Name: BaiZhuang
Certification: RoHS,REACH
Model Number: BZ-6805-3R-K
Detail Information
Place of Origin:
China
Brand Name:
BaiZhuang
Certification:
RoHS,REACH
Model Number:
BZ-6805-3R-K
Product Name:
High-Resistance Polyurethane Potting Compound For Outdoor Electronics
Color:
All Color
Material Type:
Polyurethane
Viscosity:
1000 MPa·s
Curetime:
2 Hours
Hardness:
ShoreA 82
Thermal Conductivity:
0.4 W/m·K
Application:
Outdoor LED Lighting
Mix Ratio:
30:100 (by Weight)
Dielectric Strength:
18 To 25 KV/mm
Operating Temperaturerange:
-40°C To 120°C
Waterproof:
IP68
Highlight:

High Light

Highlight:

Customizable Polyurethane Potting Compounds

,

Electronic Polyurethane Potting Compounds

,

potting compound for electronic components

Trading Information
Minimum Order Quantity:
750KG
Price:
Negotiable
Packaging Details:
6805 A for 5kg/10kg; 6805 B for 25KG/200KG
Delivery Time:
7 working days after payment
Payment Terms:
T/T,L/C,D/A,D/P
Supply Ability:
1000 Tons per Month
Product Description

Customizable-Curing Polyurethane Potting Compound For Outdoor LED Lighting

BZ-6805-3R-K is a versatile two-component polyurethane potting compound optimized for waterproofing, sealing, and insulation of outdoor LED lighting fixtures. With adjustable curing times and multi-color options, it balances workability and performance to meet diverse manufacturing requirements. Compliant with RoHS/REACH regulations, this formula delivers reliable protection across -40℃ to 120℃, featuring ultra-high electrical resistivity (≥1.0×10¹⁴ Ω/sq) and low water absorption (≤0.5%) for long-term stability in harsh outdoor environments.

Key Product Features

  1. Multi-Color Customization: Available in beige, black, white, or grey to match aesthetic and functional requirements of LED lighting fixtures.
  2. Adjustable Curing Speed: Pot life 14-28 minutes and curing time 2-4 hours at 25℃ (adjustable via process/temperature), ideal for flexible production lines.
  3. Ultra-High Electrical Insulation: Surface/volume resistivity ≥1.0×10¹⁴ Ω/sq/Ω·cm and breakdown voltage ≥15 kV/mm ensure superior component isolation.
  4. Balanced Mechanical Strength: Shore A 82±8 hardness with ≥5 MPa tensile strength and ≥40% elongation, resisting vibration and impact in outdoor installations.
  5. Efficient Processing: 3:10 mix ratio with fast heat curing (1±0.5 hour at 60℃), supporting high-volume manufacturing.
  6. Global Compliance: RoHS/REACH compliant, meeting international standards for outdoor electronic assemblies.

Technical Parameters

                                     Parameters

Hardener

BZ-6805-3R-K A

Resin

BZ-6805-3R-K B



Before curing

Appearance

Brown liquid

Beige/Black/White/

Grey liquid

Viscosity(mPa·s.25℃)

120-260

3700±1100

Initial mixed viscosity(mPa·s.25℃)

1000±300

Density(g/cm³.25℃)

1.12±0.05

1.47±0.05



Mixing&Curing





Mix ratio(by weight)

A:B=30:100

Pot life 130±30g(min.25℃)

14-28

(Adjustable for process/temperature)

Curing condition

Room temperature curing

Surface drying time 30g(H.25℃)

1-3

(Adjustable for process/temperature)

Curing time 30g(H.25℃)

2-4

(Adjustable for process/temperature)

Curing time(Heated)

60℃ heated 1±0.5H





After curing



Color

Beige/Black/White/Grey

Hardness (Shore A)

82±8

Temperature resistance(℃)

-40~120

Flame retardancy UL94

HB-V2

Thermal conductivity(W/m.k)

≥0.40

Water absorption(24H)

0.5%

Surface resistivity(Ω/sq)

≥1.0×1014

Volume resistivity(Ω.cm)

≥1.0×1014

Tensile strength(MPa)

≥5

Elongation at break(%)

40%

Dielectric constant(at 50Hz)

4

Breakdown voltage(kV/mm)

≥15

Product Applications

  1. Outdoor LED Lighting Fixtures: Seals and insulates street lamps, floodlights, and garden lights, providing long-term protection against rain, dust, and UV exposure.
  2. Architectural LED Systems: Protects facade lighting, landscape lights, and decorative fixtures in urban and commercial environments.
  3. Solar-Powered Lighting: Encapsulates LED drivers and charge controllers in off-grid solar lighting systems, enhancing reliability in remote locations.
  4. Industrial LED Luminaires: Insulates high-bay lamps and warehouse lighting, withstanding temperature fluctuations and mechanical stress.
  5. Marine LED Lighting: Provides waterproof protection for boat lights and underwater fixtures in saltwater environments.



Directions for Use

  1. Pre-potting Preparation: Calibrate scales, prepare potting tools, cleaning tools, check machine settings, check vacuum pump force, etc.
  2. Product Pre-treatment: Place product on a level surface or fixture. Remove dust, clean, degrease, and dry if necessary.
  3. Accurate Proportioning: Manual operation requires precise mixing according to the specified ratio and recording. Machine potting requires calibrated ratios and first-article confirmation is recommended.
  4. Mixing & Stirring: Manual operation requires thorough stirring or using electric stirrers to ensure homogeneous mixing. Machine potting requires sufficient stirring speed, adjust as needed.
  5. Uniform Potting: Manual operation should be done in small, multiple batches to ensure uniformity. Machine potting should follow the programmed path for quantitative dispensing.
  6. Inspection or Secondary Potting: After potting, visually inspect as needed. Perform touch-up, bubble removal, or secondary potting if required.
  7. Curing: Allow the potted and inspected products to cure at room temperature or with heat assistance (recommended 60°C if needed), according to product and process requirements.
  8. Final Product Confirmation: Perform visual inspection and performance testing as required by the customer.



Packing & Shipping & Storage

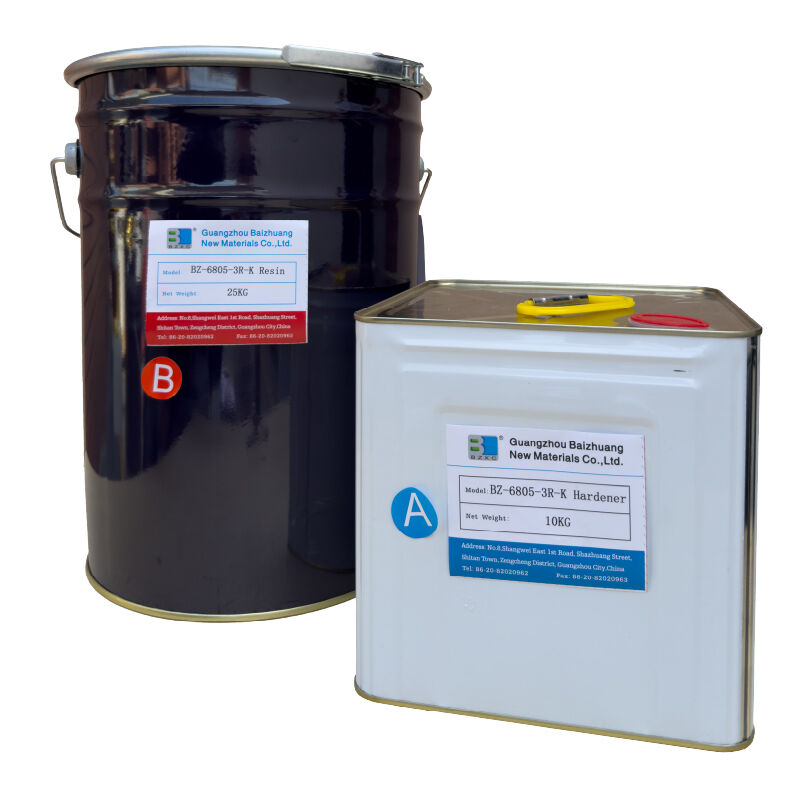

  1. Hardener: Typically 5KG/10KG/25KG/200KG metal or plastic drums.
  2. Resin: Typically 25KG/200KG metal or plastic drums.
  3. Store and transport as a general chemical product.
  4. Store sealed, protected from light at room temperature. Shelf life varies from 6 to 12 months depending on packaging; please refer to the expiry date on the shipping package.
  5. When temperature drops to 15°C or lower, the hardener or resin should be stored in a warm place or heated before use for potting. Specific heating recommendations depend on the temperature drop; please communicate and consult with us.
