Encapsulated Polyurethane Potting Compounds Material For Pcb Electronic Components 6807 WT

Heat-resistant Excellent Electrical Properties Polyurethane Potting Compounds

Product Description

BZ-6807(WT) Polyurethane potting compound  is a white, heat-resistant, high-performance flame-retardant V0-grade polyurethane. This polyurethane boasts excellent electrical and mechanical properties, meeting the RTI 130°C heat resistance standard. It effectively fulfills the performance requirements for potting compounds in power modules, control boards, sensors, and general power electronic devices.

Key Product Features

Technical Parameters

Product Applications

1. Automotive Electronics: Excellent Electrical Performance, Vibration Resistance, Flame Retardant V0 Class, Heat Stability and Reliability
2. Low-altitude aircraft: Low density can be combined with lightweight design, flexible materials, and waterproof IP68
3. Sensor: low density, flame-retardant V0, low dielectric constant, and low-temperature resistant;
4. Industrial controllers and control boards: Excellent high-temperature resistance, compliant with RTI 130 temperature rating standards, featuring high thermal conductivity and heat dissipation capabilities, with V0-class fire resistance.
5. Other electronic products: Flame-retardant V0, UL Yellow Card, compliant with RTI 130 temperature resistance standard. Their outstanding electrical and mechanical properties meet most electronic products' requirements for high-performance materials.

Directions for Use

1. Pre-potting Preparation: Calibrate scales, prepare potting tools, cleaning tools, check machine settings, check vacuum pump force, etc.
2. Product Pre-treatment: Place product on a level surface or fixture. Remove dust, clean, degrease, and dry if necessary.
3. Accurate Proportioning: Manual operation requires precise mixing according to the specified ratio and recording. Machine potting requires calibrated ratios and first-article confirmation is recommended.
4. Mixing & Stirring: Manual operation requires thorough stirring or using electric stirrers to ensure homogeneous mixing. Machine potting requires sufficient stirring speed, adjust as needed.
5. Uniform Potting: Manual operation should be done in small, multiple batches to ensure uniformity. Machine potting should follow the programmed path for quantitative dispensing.
6. Inspection or Secondary Potting: After potting, visually inspect as needed. Perform touch-up, bubble removal, or secondary potting if required.
7. Curing: Allow the potted and inspected products to cure at room temperature or with heat assistance (recommended 60°C if needed), according to product and process requirements.
8. Final Product Confirmation: Perform visual inspection and performance testing as required by the customer.

Packing & Shipping & Storage

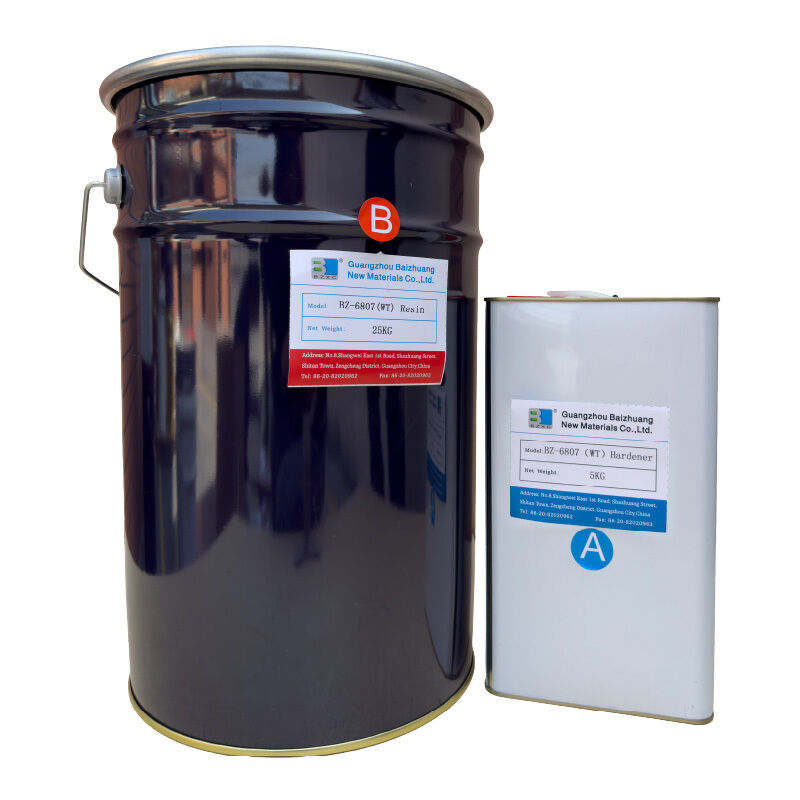

1. Hardener: Typically 5KG/10KG/25KG/200KG metal or plastic drums.
2. Resin: Typically 25KG/200KG metal or plastic drums.
3. Store and transport as a general chemical product.
4. Store sealed, protected from light at room temperature. Shelf life varies from 6 to 12 months depending on packaging; please refer to the expiry date on the shipping package.
5. When temperature drops to 15°C or lower, the hardener or resin should be stored in a warm place or heated before use for potting. Specific heating recommendations depend on the temperature drop; please communicate and consult with us.
