High-Temperature Transparent Silicone Potting Compound For LED & Electronics
BZ-8803 is a two-component room-temperature-curing silicone potting compound engineered for high-performance protection of LED lighting and electronic devices. With exceptional transparency, ultra-wide temperature resistance (-60~200℃), and compliance with RoHS and REACH regulations, it provides reliable defense against UV radiation, thermal shock, and moisture. This formula features high electrical insulation (breakdown voltage ≥15 kV/mm) and good thermal conductivity, ensuring the longevity and performance of sensitive components in extreme industrial and outdoor environments.
Key Product Features
- Ultra-high temperature tolerance: Stable performance from -60 to 200℃, withstanding extreme thermal shock in aerospace, automotive, and industrial applications
- High transparency: Maintains optical clarity after curing, ideal for high-power LED lighting and optical display systems
- Rapid curing: Full cure in 1.5-3.5 hours at room temperature; accelerated curing available with 60℃ heating
- Excellent insulation: Breakdown voltage ≥15 kV/mm, surface resistivity ≥1.0*10¹⁴ Ω/sq for reliable electrical safety
- Dual compliance: Meets RoHS and REACH regulations for eco-friendly electronic manufacturing
- UV resistance: Superior protection against ultraviolet radiation degradation in outdoor applications
- Excellent fluidity: Mixed viscosity 3400-6000 cps at 25℃, ensuring deep penetration into complex electronic assemblies
Technical Parameters
| Parameters |
Part A BZ-8803 |
Part B BZ-8803 |
| Before curing |
Appearance |
Clear liquid |
Clear liquid |
| Viscosity (cps.25℃) |
7500-13500 |
45-55 |
| Initial mixed viscosity (cps.25℃) |
3400-6000 |
| Density (g/cm³.25℃) |
0.96±0.05 |
0.99±0.05 |
| Mixing & Curing |
Mix ratio (by weight) |
A:B=3:1 |
| Pot life 130±30g (min.25℃) |
20±5 |
| Curing condition |
Room temperature curing |
| Surface drying time 30g (min.25℃) |
30-50min |
| Curing time 30g (H.25℃) |
1.5H-3.5H |
| After curing |
Color |
Clear |
| Hardness (Shore A) |
20±5A |
| Temperature resistance (℃) |
-60~200℃ |
| Water absorption (24H) |
≤0.5% |
| Surface resistivity (Ω/sq) |
≥1.0*10¹⁴ |
| Volume resistivity (Ω.cm) |
≥1.0*10¹³ |
| Elongation at break (%) |
≥40% |
| Dielectric constant(at 50Hz) |
≤4.5 |
| Breakdown voltage (kV/mm) |
≥15 |
Product Applications
- High-Power LED Lighting: Encapsulates LED modules, drivers, and heat sinks in streetlights, stadium lights, and automotive headlights, providing thermal management and optical clarity
- Industrial Electronics: Protects power supplies, motor controllers, and sensors in manufacturing equipment, withstanding extreme temperature fluctuations
- Aerospace & Automotive Electronics: Seals avionics components, engine control units, and battery management systems against vibration and thermal shock
- Outdoor Communication Devices: Insulates base stations, satellite receivers, and solar inverters from moisture, dust, and UV radiation
- Medical Electronics: Encapsulates diagnostic equipment, surgical tools, and implantable devices requiring biocompatible and high-temperature-resistant protection
Directions for Use
- Pre-potting Preparation: Calibrate scales, prepare potting tools, cleaning tools, check machine settings, check vacuum pump force, etc.
- Product Pre-treatment: Place product on a level surface or fixture. Remove dust, clean, degrease, and dry if necessary.
- Accurate Proportioning: Manual operation requires precise mixing according to the specified ratio and recording. Machine potting requires calibrated ratios and first-article confirmation is recommended.
- Mixing & Stirring: Manual operation requires thorough stirring or using electric stirrers to ensure homogeneous mixing. Machine potting requires sufficient stirring speed, adjust as needed.
- Uniform Potting: Manual operation should be done in small, multiple batches to ensure uniformity. Machine potting should follow the programmed path for quantitative dispensing.
- Inspection or Secondary Potting: After potting, visually inspect as needed. Perform touch-up, bubble removal, or secondary potting if required.
- Curing: Allow the potted and inspected products to cure at room temperature , according to product and process requirements.
- Final Product Confirmation: Perform visual inspection and performance testing as required by the customer.
Packing & Shipping & Storage
-

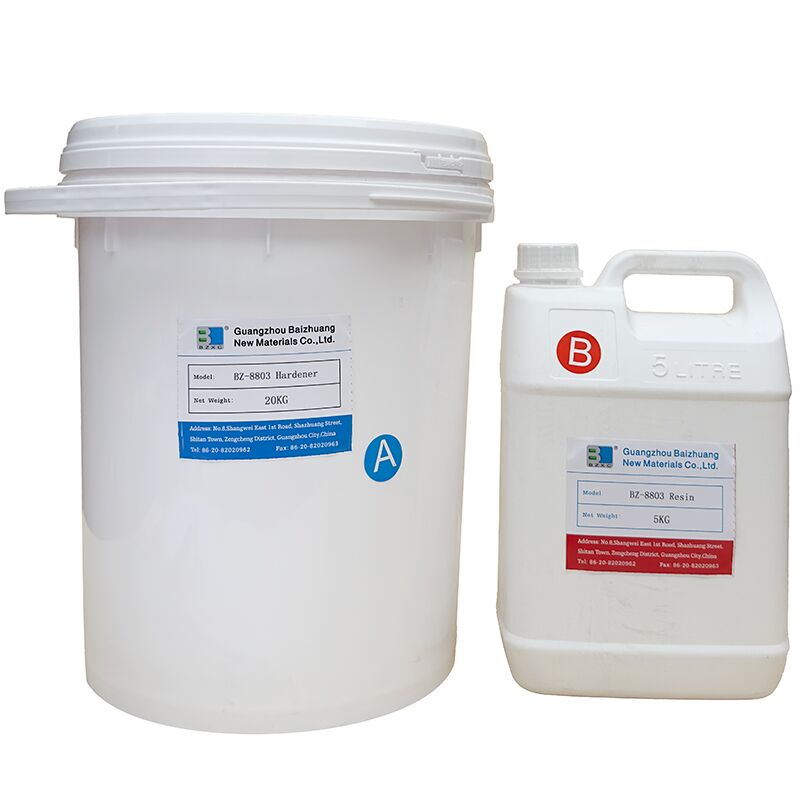

Part A: Typically supplied in 20kg sealed plastic drums.
Part B: Typically supplied in 5kg sealed plastic drums.
- Store and transport as a general chemical product.
- Store sealed, protected from light at room temperature. Shelf life varies from 6 to 12 months depending on packaging; please refer to the expiry date on the shipping package.
- Store and transport as a general chemical product,Keep out of reach of children.
FAQ:
Q: What are the primary applications of Weather-Resistant Transparent Silicone Potting Compounds?
A: These compounds are ideal for protecting electronic components, outdoor LED lighting, sensors, and other devices exposed to harsh weather conditions due to their excellent weather resistance and transparency.
Q: How does the transparency of this silicone potting compound benefit my project?
A: The transparent nature allows for visual inspection of components after potting, and it does not obstruct light, making it perfect for LED encapsulation and optical applications.
Q: Can this silicone potting compound withstand extreme weather conditions?
A: Yes, it is specifically formulated to resist UV radiation, moisture, temperature fluctuations, and other environmental factors, ensuring long-lasting protection outdoors.
Q: Is this product easy to apply and cure?
A: Yes, the compound has excellent flow properties for easy application and cures at room temperature to form a flexible, durable, and weatherproof seal.
Q: Does the silicone potting compound provide electrical insulation?
A: Absolutely, it offers excellent electrical insulation properties, protecting sensitive electronic components from moisture and contaminants.
