LED Light Flexible Polyurethane PU Potting Compound IP66 Waterproof 704

Economical Transparent PU Potting Compound for LED Flexible Strips

704 Potting Adhesive is a clear polyurethane compound designed for indoor flexible LED light strips. It provides strong bonding to LED chips and FPCs while maintaining excellent flexibility. Fast curing speeds up production efficiency for potted strip lighting. This cost-effective material meets RoHS standards, offering an affordable transparent potting solution.

Parameters		Hardener BZ-704-RoHs A	Resin BZ-704-RoHs B
Before curing	Appearance	Pale yellow clear liquid	Light yellow clear liquid
	Viscosity(mPa·s.25℃)	3500±1000	750±250
	Initial mixed viscosity(mPa·s.25℃)	1550±350
	Density(g/cm³.25℃)	1.06±0.05	1.02±0.05
Mixing&Curing	Mix ratio(by weight)	A:B=1:1
	Pot life 130±30g(min.25℃)	15±5min
	Curing condition	Room temperature curing
	Surface drying time 30g(H.25℃)	3±1
	Curing time 30g(H.25℃)	6±2
	Curing time 30g(Heated)	60℃ heated 1±0.5H
After curing	Hardness (Shore A)	48±8
	Temperature resistance(℃)	-40~65℃
	Water absorption(24H)	≤1.0%
	Surface resistivity (Ω/sq)	≥1.0×1011
	Volume resistivity (Ω.cm)	≥1.0×1011
	Tensile strength(MPa)	≤3
	Elongation at break(%)	≥200%
	Dielectric constant(at 50Hz)	≥6
	Breakdown voltage(kV/mm)	≥10

Product Applications

Budget-friendly clear polyurethane material tailored to cold-temperature conditions for Flexible LED Strip Lights, which boasts exceptional flexibility and fast curing time of 1 to 2 hours. It greatly boosts the manufacturing efficiency of LED strip production.

1. Pre-potting Preparation: Calibrate scales, prepare potting tools, cleaning tools, check machine settings, check vacuum pump force, etc.
2. Product Pre-treatment: Place product on a level surface or fixture. Remove dust, clean, degrease, and dry if necessary.
3. Accurate Proportioning: Manual operation requires precise mixing according to the specified ratio and recording. Machine potting requires calibrated ratios and first-article confirmation is recommended.
4. Mixing & Stirring: Manual operation requires thorough stirring or using electric stirrers to ensure homogeneous mixing. Machine potting requires sufficient stirring speed, adjust as needed.
5. Uniform Potting: Manual operation should be done in small, multiple batches to ensure uniformity. Machine potting should follow the programmed path for quantitative dispensing.
6. Inspection or Secondary Potting: After potting, visually inspect as needed. Perform touch-up, bubble removal, or secondary potting if required.
7. Curing: Allow the potted and inspected products to cure at room temperature or with heat assistance (recommended 60°C if needed), according to product and process requirements.
8. Final Product Confirmation: Perform visual inspection and performance testing as required by the customer.

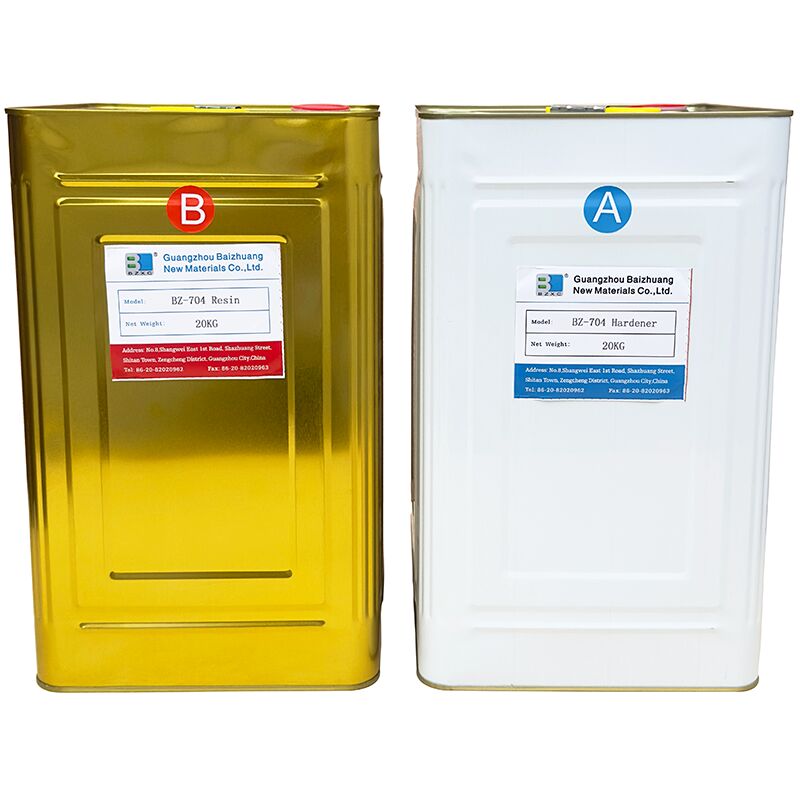

1. Hardener: Typically 10KG / 20KG/ 200KG metal or plastic drums.
2. Resin: Typically  10KG / 20KG / 200KG metal or plastic drums.
3. Store and transport as a general chemical product.
4. Store sealed, protected from light at room temperature. Shelf life varies from 6 to 12 months depending on packaging; please refer to the expiry date on the shipping package.
5. When temperature drops to 15°C or lower, the hardener or resin should be stored in a warm place or heated before use for potting. Specific heating recommendations depend on the temperature drop; please communicate and consult with us.
