Thermal Conductivity Electrical Potting Compound Material For Electronic Components BZ-3902

High-Thermal-Conductivity  Electrical Potting Compound For Power Electronics

Product Description

BZ-3902 is a two-component addition-cure Electrical Potting Compound optimized for high-power electronic devices requiring efficient heat dissipation and reliable protection, featuring excellent thermal conductivity (≥0.8 W/m·K), wide temperature tolerance (-60~200℃), and UL94 V2 flame retardancy. With a 1:1 mix ratio and balanced pot life of 45±15 minutes at 25℃, it supports both manual and automated production processes while providing exceptional electrical insulation, waterproofing, and vibration resistance. As an addition-cure product, it cures without releasing volatile byproducts, making it suitable for sealed assemblies and sensitive electronic components.

Key Product Features

1. Efficient Heat Dissipation: Formulated with high-quality thermal fillers to create an efficient heat conduction path, effectively transferring heat from power components to heat sinks or housings
2. Wide Temperature Stability: Maintains consistent mechanical and electrical properties across -60℃ to 200℃, ensuring reliable performance in extreme operating environments
3. Exceptional Electrical Insulation: Offers high surface resistivity (≥1.0×10¹⁴ Ω/sq) and breakdown voltage (≥20 kV/mm), providing safe operation in high-voltage power systems
4. Low-Volume Curing: Addition-cure mechanism eliminates volatile byproducts during curing, preventing void formation and ensuring reliable performance in sealed assemblies
5. Balanced Operational Time: 45±15 minute pot life at 25℃ provides sufficient time for complex manual operations while supporting efficient automated production lines

Technical Parameters

Product Applications

1. LED Power Supplies & Drivers: Encapsulates high-power LED drivers in streetlights, stadium lights, and industrial lighting fixtures, efficiently dissipating heat from power components to ensure stable performance and long lifespan
2. Industrial Control Systems: Protects PLC modules, motor controllers, and variable frequency drives (VFDs) in manufacturing equipment, providing vibration resistance and heat management for reliable operation in harsh industrial environments
3. New Energy Power Systems: Pottings power converters, battery management systems (BMS), and charging modules in electric vehicles, solar inverters, and energy storage systems, withstanding extreme temperature fluctuations and ensuring electrical safety
4. Telecommunications Infrastructure: Encapsulates power amplifiers, base station power supplies, and signal processing modules in 5G communication systems, providing efficient heat dissipation and protection against environmental factors

Critical Curing & Handling Precautions

BZ-3902 utilizes an addition-cure mechanism that is sensitive to certain materials:

1. Avoid Contamination: Prevent contact with organotin compounds, sulfur-containing materials, and amine-containing substances during mixing and dispensing, as these can inhibit curing
2. Vacuum Degassing: For optimal results, degas the mixed adhesive under vacuum to remove air bubbles, ensuring uniform potting and reliable heat transfer
3. Humidity Control: Maintain workshop humidity ≤70% during curing to prevent moisture-related issues, especially in sealed assemblies

Directions for Use

1. Pre-potting Preparation: Calibrate scales, prepare potting tools, cleaning tools, check machine settings, check vacuum pump force, etc.
2. Product Pre-treatment: Place product on a level surface or fixture. Remove dust, clean, degrease, and dry if necessary.
3. Accurate Proportioning: Manual operation requires precise mixing according to the specified ratio and recording. Machine potting requires calibrated ratios and first-article confirmation is recommended.
4. Mixing & Stirring: Manual operation requires thorough stirring or using electric stirrers to ensure homogeneous mixing. Machine potting requires sufficient stirring speed, adjust as needed.
5. Uniform Potting: Manual operation should be done in small, multiple batches to ensure uniformity. Machine potting should follow the programmed path for quantitative dispensing.
6. Inspection or Secondary Potting: After potting, visually inspect as needed. Perform touch-up, bubble removal, or secondary potting if required.
7. Curing: Allow the potted and inspected products to cure at room temperature or with heat assistance (recommended 60°C if needed), according to product and process requirements.
8. Final Product Confirmation: Perform visual inspection and performance testing as required by the customer.

   9. This series of products are room-temperature-curing, addition-cure two-component silicone. During the dispensing process, avoid contact with the following three types of materials to prevent reactions that may affect the curing effect:

       a. Organotin compounds and organotin-containing silicone rubber.

       b. Sulfur, sulfides, and sulfur-containing materials.

       c. Amine compounds and amine-containing materials.

     10. It should be noted that during manual operation, when vacuumizing the mixed A+B adhesive, the vacuum pressure must be controlled to ensure the adhesive is not completely sucked out of the container by the vacuum.

Packing & Shipping & Storage

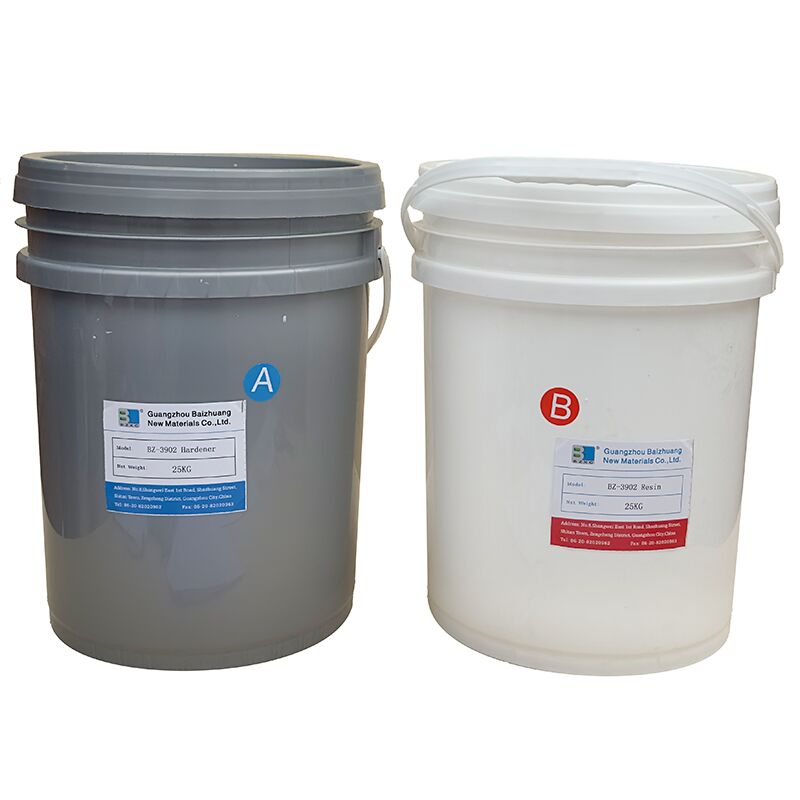

1. Part A: Typically supplied in 25kg sealed plastic drums.
2. Part B: Typically supplied in 25kg sealed plastic drums.
3. Store and transport as a general chemical product.
4. Store sealed, protected from light at room temperature. Shelf life varies from 6 to 12 months depending on packaging; please refer to the expiry date on the shipping package.
5. When temperature drops to 15°C or lower, the hardener or resin should be stored in a warm place or heated before use for potting. Specific heating recommendations depend on the temperature drop; please communicate and consult with us.

 FAQ:

Q1: What are the primary applications of High-Performance Silicone Potting Compounds?

A1: High-Performance Silicone Potting Compounds are widely used for protecting electronic components, sensors, and circuit boards from moisture, dust, vibration, and thermal shock. They are ideal for automotive, aerospace, and industrial electronics applications.

Q2: What temperature range can High-Performance Silicone Potting Compounds withstand?

A2: These silicone potting compounds typically withstand a broad temperature range, from approximately -60°C to +220°C, making them suitable for extreme environmental conditions.

Q3: Are these silicone potting compounds electrically insulating?

A3: Yes, High-Performance Silicone Potting Compounds provide excellent electrical insulation, helping to prevent short circuits and ensuring reliable performance of electronic assemblies.

Q4: How is the curing process performed for these silicone potting compounds?

A4: The curing process can vary depending on the specific formulation but generally involves room temperature curing or heat curing. They typically cure to a solid elastomer within hours to a day, providing durable protection.

Q5: Are High-Performance Silicone Potting Compounds resistant to chemicals and moisture?

A5: Yes, these compounds exhibit strong resistance to moisture, water, and various chemicals, which helps enhance the longevity and reliability of the encapsulated components.
